About Project

Iconic Tower Waterproofing Project: This project encompasses waterproofing of foundations, retaining walls, water features, and landscape areas using EPDM membrane. Tanks will be waterproofed with a hot-applied polyurea/PU system. Wet areas will receive a cementitious coating.

ClientAl-Borouj Developments
ContractorTarget
Completed27 June 2024
Websitewww.english.cscec.com

Project overview

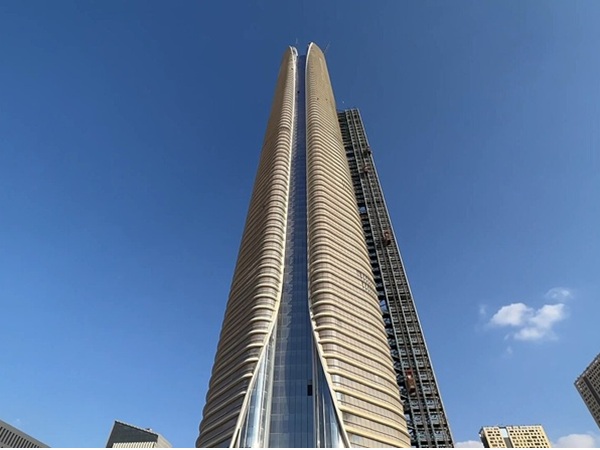

The Iconic Tower in Egypt’s New Administrative Capital stands in the Central Business District. A building of this height and importance needs waterproofing that protects the structure from below ground to the roof, with each element exposed to different conditions: groundwater against foundations and retaining walls, permanent immersion in water features and tanks, and daily wetting in service areas.

Scope of waterproofing works

  • Foundations and retaining walls: an EPDM membrane protects the below-ground structure against groundwater and soil moisture.
  • Water features and landscape areas: the same EPDM membrane keeps water features watertight and separates planted areas from the slab below.
  • Tanks: a hot-applied polyurea/PU system forms a seamless lining without laps or joints.
  • Wet areas: a cementitious waterproof coating is applied to the concrete before the finishes.

Krypton systems for this type of work

For tank linings, Krypton’s hot-spray range includes Polyurea Rayston, a pure polyurea with a gel time of 3–4 seconds and 324% elongation, which has passed migration testing for contact with drinking water. For wet areas, Rayston 170 Elastic is a two-component, polymer-modified cementitious coating that meets EN 1504-2 and accommodates thermal movement in the substrate.

Surface preparation decides the result

Whatever system is chosen, a liquid-applied lining is only as good as the concrete beneath it. The substrate must be sound, clean and free of laitance, and its moisture content must suit the primer. For damp concrete with 4–8% moisture, Krypton’s Humidity Primer is a two-component, water-based epoxy designed to bond liquid membranes. On smooth, non-porous details such as metal pipes and fittings, PU Primer improves adhesion. Penetrations, corners and joints in tanks should be detailed before the main coat so the lining stays continuous.

Client: Al-Borouj Developments. Contractor: Target. Completed: 27 June 2024. To discuss a similar project, contact Krypton Egypt.
